Fixed Wing UAV Test Case

  1. HOME
  2. MARKET INFORMATION
  3. TEST CASE
  4. Fixed Wing UAV Test Case
  5. Do you want your UAV to become more and ...

Do you want your UAV to become more and more competitive in the market?

Do you want your UAV to become more and more competitive in the market? Jianfan technology Thunder Stone series solid-state lithium-ion battery can help you!


Dr. Huang brings you the case of Jianfan technology Thunder Stone series solid-state lithium-ion battery used for vertical fixed-wing UAVs. You can know the long endurance of Jianfan technology solid-state lithium-ion battery through our real cases.


This test is conducted by DD(pseudonym), an old customer of Jianfan Technology. This is the second time that DD uses Jianfan technology solid-state lithium battery for testing.


In this test, DD tested a vertical fixed-wing UAV with a size of 4128*1920*750 mm. The UAV was equipped with 4 sets of Jianfan technology Thunder Stone series 6S 30Ah solid-state lithium batteries by the way of two batteries being connected in series and the other two batteries in parallel. The UAV was equipped with a single-light pod, and its total takeoff weight was 25kg.


The test results are as follows: The done begin to land at 39-40V, hovering very smoothly, with a flight time of 3 hours and 23 minutes.


The voltage changes during the flight are as follows:


Name

Takeoff voltage

Departure voltage

One hour flight

Two hours flight

Three hours flight

Return voltage

Voltage at landing

Back voltage

Voltage

50.7V

49.6V

47.7V

44.8V

42.0V

40.0V

35.5V

39.5V


The test conclusion is as follows: After several tests, the test data obtained by the customer is basically consistent with the above results.


In November 2021, due to the excellent endurance of the Jianfan solid-state lithium-ion battery, DD made its UAV more competitive in the market, thus attracting foreign customers to sign a contract with the company for 15 drones of this type. Finally, DD purchased 60 sets of Jianfan 6S 30Ah solid-state lithium-ion batteries from our company for supporting use.


After you read the test result, do you also want to use the Jianfan Thunder Stone series solid-state lithium-ion battery for the UAV flight test? Please contact Jianfan technology. You only need to provide the required battery size, UAV load, and specifications, and the professional team of Jianfan Technology will provide you with an efficient and feasible solution for using Jianfan solid-state lithium-ion battery.


Jianfan Thunder Stone series solid-state lithium-ion battery provides a high-quality battery for professional UAVs.

Related News

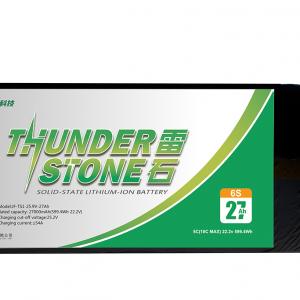

Do you want a kind of solid-state lithium-ion battery with long endurance and is lightweight?
