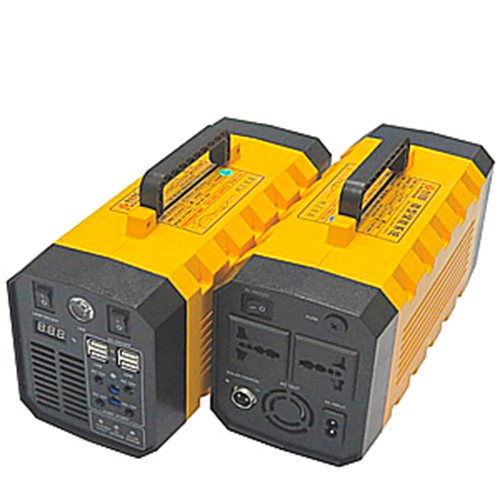

Portable Power-500W

  • Product Item:JF-ES-500
  • size:280*135*110mm
  • weight:3.5kg
  • capacity:453Wh/345Wh/288Wh
  • Solid State Power Supply  , Portable Power Supply  , Reserve Power Supply
    Inquiry Send Email

    Description

    Product Model

    JF-ES-500A

    JF-ES-500B

    JF-ES-500C

    Capacity

    12V41Ah(453WH)

    12V 31AH(345WH)

    12V26AH(288WH)

    Output Power

    Rated: 500W, Max:1000W

    Input Voltage

    AC: 110V-220V 5Q/60Hz , Solar, wind energy DC 18-36V input,vehicle 12V input, without controller.

    Output Voltage

    220V 50Hz/110V60Hz

    DC Output

    4 12V/4A, 4 USB5V/2A

    LED lights

    1W, Max 3W

    Solar Charge

    18V 100W

    Vehicle Charge

    12V Output,do not use 24V

    Output Waveform

    Pure sine wave

    Power failure response time

    ≤5 millisecond

    Overload

    When the overload occurs, the AC output is disconnected, the indicator light turns into red, the load is disconnected, restart the battery.

    Short Circuit

    When the short circuit occurs, the AC output and the load is disconnected, restart the battery.

    Lithium Battery

    Cycle life>500C

    Weight

    Net weight: 3.0kg, Gross weight: 3.5kg

    Product Dimensions

    ll*13.5*28cm

    Color

    Yellow(Various colors can be customized)
